casting frameless glass deck mount spigot
casting frameless glass deck mount spigot
casting frameless glass deck mount spigot
casting frameless glass deck mount spigot
Price
US $19.8
Model
EK102.14
MOQ
10 piece

Item specifics

Size
49×49×160mm
Glass Thickness
8-12mm
Surface Finish
Satin/Mirror Polished

Review

Description

Product Name casting frameless glass deck mount spigot
Item Number EK102.14
Material Stainless Steel 316,Duplex 2205 Stainless Steel
Characteristic This casting spigot is deck mount spigot
Surface Satin Polished,Mirror Polished

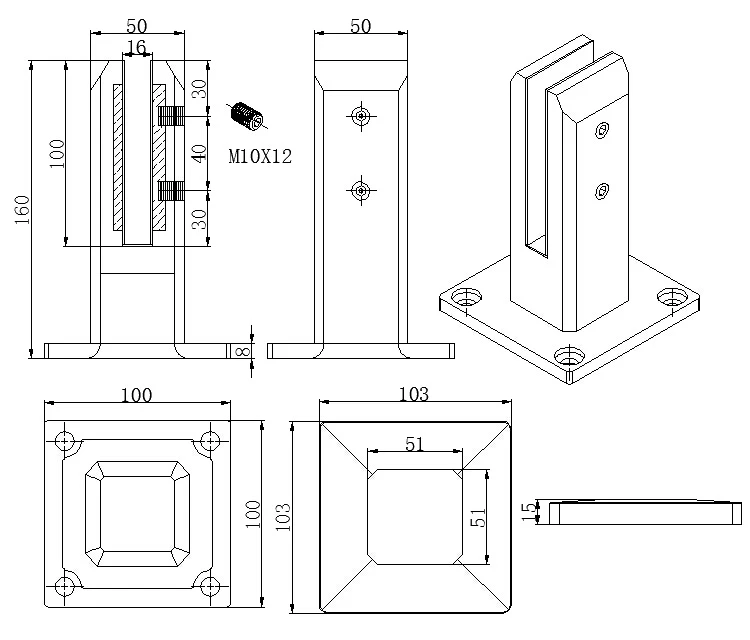

Sizes Details spigot body 49×49×160mm grub screw M10×12mm
rubber spacer 99×47.5×1.0mm groove 100×17mm
pressure plate 73×29×3mm base plate 100×100×8.5mm
cover plate 103×103×50×50×1.0×15mm
Glass Thickness 8-12mm glass panel
Weight N.W:1.87KG,G.W:1.93KG

Advantage

1.The new Trade agreement between Australia,Korea and China importer no longer need to pay duty.

2.SS304 Ni8,SS316 Ni10,Duplex2205 Cr21,high quality material includes low carbon,tough,durable,excellent resistance to corrosion,suitable for outdoor uses.

3.We have own factory that can supply one-stop source to save cost.

4.We have own QC to gurantee quality.

5.We have own sales team of 10 people to make delivery time fast.

6.100% inspection before shipment.

7.We have got buyer protection trade assurance amount US$ 79,000 from alibaba.com which gurantee customers’ fund safety.
