wall to glass fixing hold-open T Type hydraulic glass hinge

wall to glass fixing hold-open T Type hydraulic glass hinge
Price
US $72.5
Model
EK202.03
Min. Order
10 piece

Item specifics

Size
112×85×60mm
Glass thickness
10-15mm
Surface Finish
Satin/Mirror Polished
Door Weight
≤65kg

Product review

Description

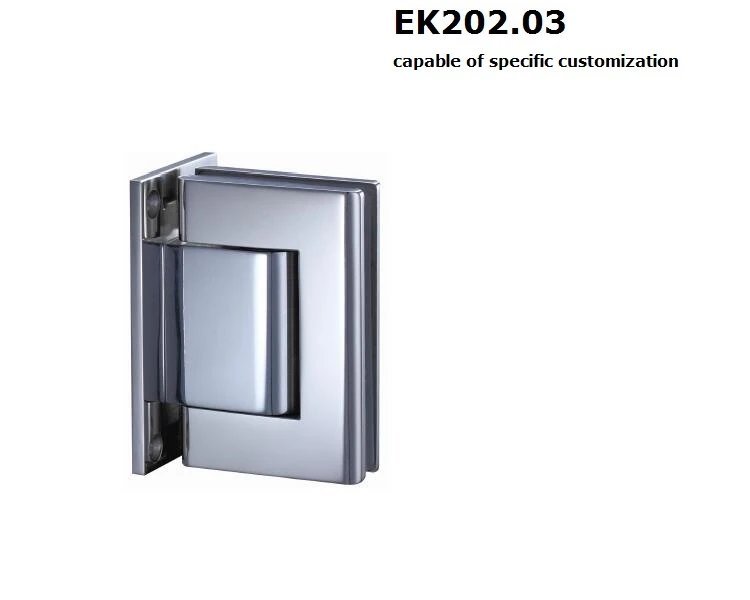

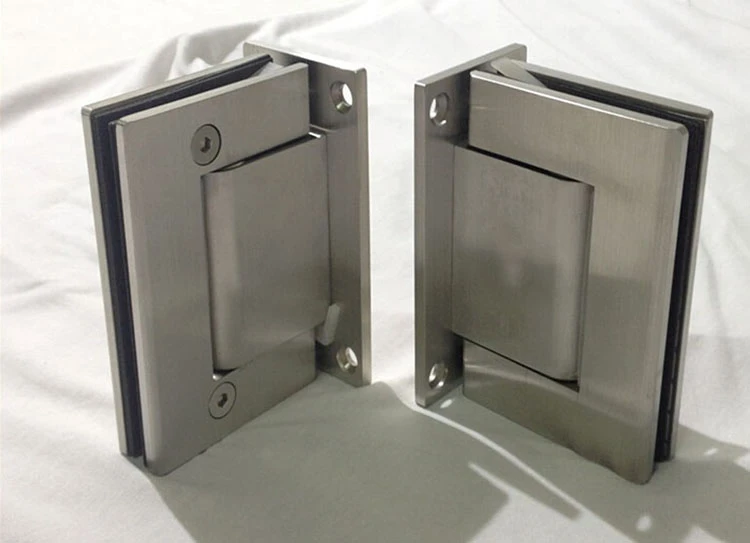

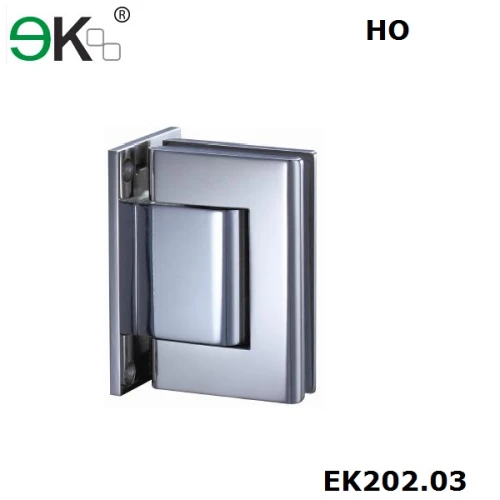

Product Name wall to glass fixing hold-open T Type hydraulic glass hinge
Item Number EK202.03
Features Door is self-closed when reached to closing angle 85 degree
Hold-open 90 degree
Material Stainless Steel 304
Surface Satin Finish/Mirror Finish
Suitable Area Tempered glass
Glass Thickness 10-15mm glass panel
Door Weight ≤65kg
Door Width ≤1000mm
Door Hight ≤2400mm
Tested According to EN1154(100.000 cycles)

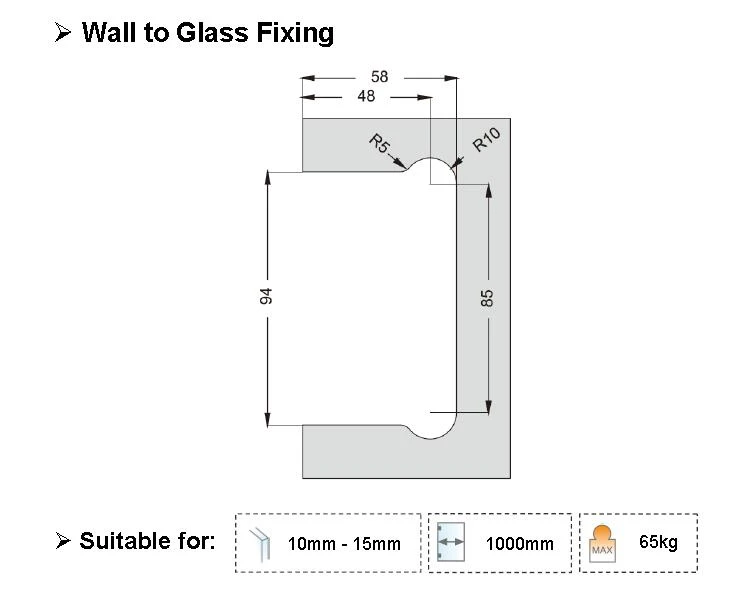

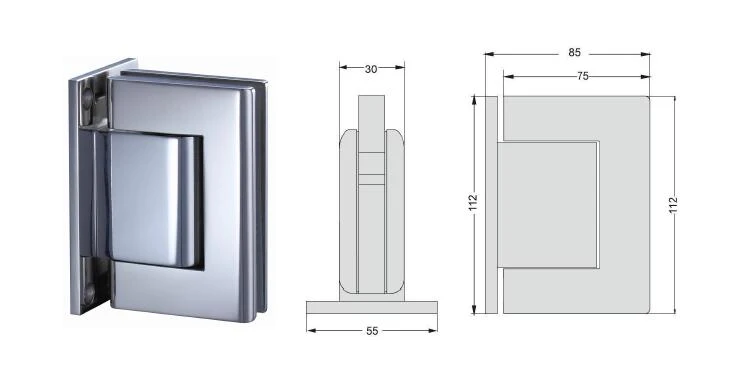

Sizes Details 112×85×60mm
Weight N.W:1.1KG,G.W:1.2KG
Remarks with damping function

Features

1.Glassto glass fixing 90˚

2.Suitablefor 10-15mm tempered glass use

3.Maximumdoor leaf weight: 65kg

4.Maximumdoor leaf width: 1000mm

5.Self-closingwhen door is closed to 85˚

6.Doubleaction, maximum door open angle: 95˚

7.Hold-openat 90˚

8.Valveadjustment available for closing speed control

9.Self-positionedwhen door reaches to initial position

10.Testedaccording to EN1154 (100,000 cycles)

Note:

Eachpair of Applause Glass Hinge consists of one damping hinge and one

Closinghinge, only damping hinge is adjustable at closing speed.

Toensure the best performance, Damping Hinge should always

Be installedbelow the Closing Hinge.

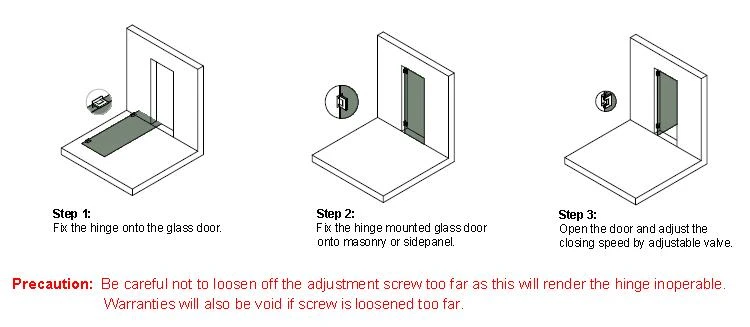

Precaution: Be careful not to loosen off theadjustment screw too far as this will render the hinge inoperable.

Warrantieswill also be void if screw is loosened too far.
