- Glass thickness
- Surface Finish
- Satin/Mirror Polished
- Door Weight

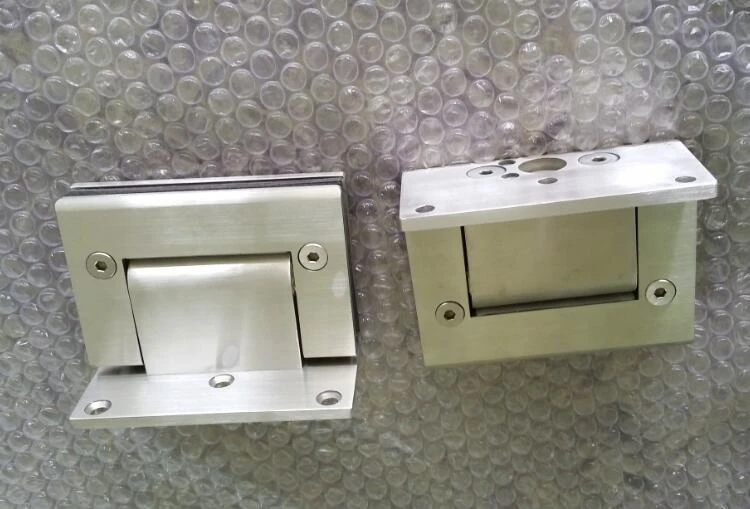

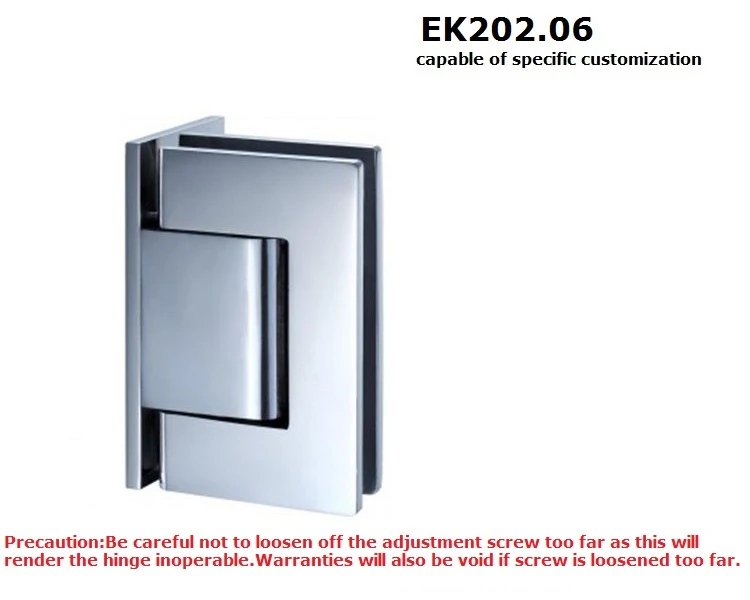

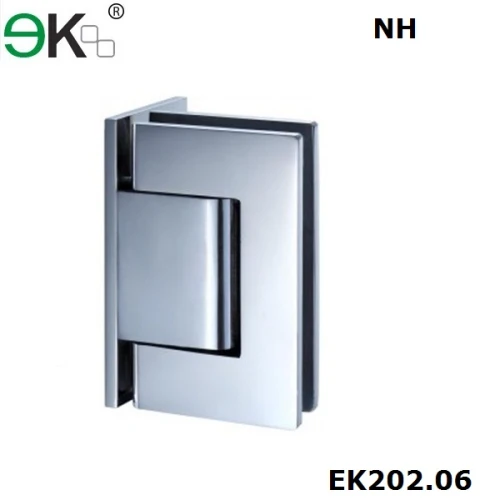

|Product Name||wall to glass fixing non-hold 90 degree L type hydraulic hinge|
|Features||Door is self-closed at any position|
|Material||Stainless Steel 304|
|Surface||Satin Finish/Mirror Finish|
|Suitable Area||Tempered glass|

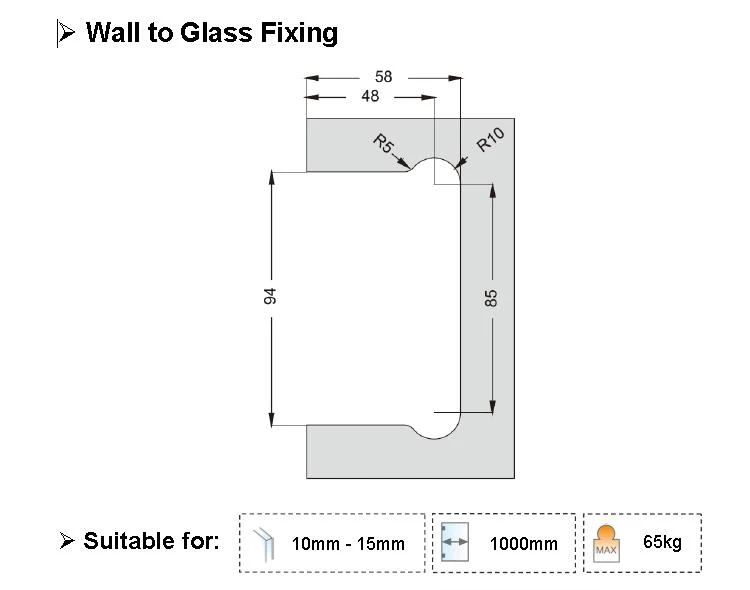

|Glass Thickness||10-15mm glass panel|
|Tested According to||EN1154(100.000 cycles)|
|Remarks||with damping function|
1.Glass to glass fixing 90˚
2.Suitable for 10-15mm tempered glass use
3.Maximum door leaf weight: 65kg
4.Maximum door leaf width: 1000mm
5.Self-closing at any door open angle
6.Double action maximum door open angle: 95˚
8.Valve adjustment available for closing speed control
9.Self-positioned when door reaches to initial position
10.Tested according to EN1154 (100,000 cycles)
Each pair of Applause Glass Hinge consists of one damping hinge and one
Closing hinge, only damping hinge is adjustable at closing speed.
To ensure the best performance, Damping Hinge should always
Be installed below the Closing Hinge.

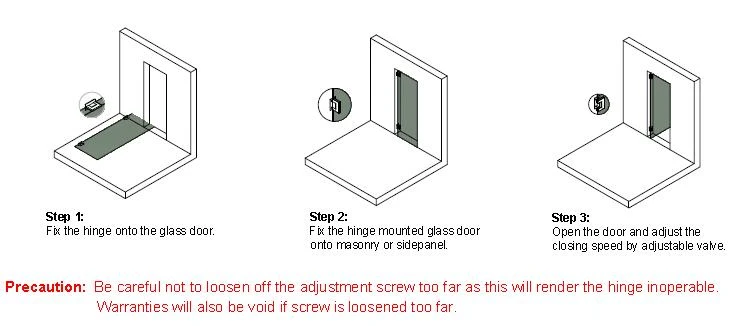

Precaution:Be careful not to loosen off the adjustment screw too far as this will render the hinge inoperable.
Warranties will also be void if screw is loosened too far.
